Diameter Sorter 1830 / 3060 / 4080 / 60100
Model: DS 1830 · DS 3060 · DS 4080 · DS 60100
LVDT-based diameter sorters for large balls from 18 to 100 mm, with ±0.15 µm repeatability and optional microstructure testing.
About the Diameter Sorter 1830 / 3060 / 4080 / 60100
The large Diameter Sorters cover balls from 18 mm to 100 mm, measuring each ball with an LVDT probe at ±0.15 µm repeatability and sorting into size groups plus NOK.
An optional microstructure test with an eddyguard S and encircling coil separates balls of differing material or hardness (ferromagnetic steels only). Note: ibg's order table lists sorting ranges for the 1830 and 3060 that conflict with its speed table; EMUS confirms the exact range in the quotation.
Technical data
- DIAMETER SORTER 1830
- Sorting Diameter (mm): 18.000 - 10-319 · Order Number: K 087 002A · ORDER NUMBER (+ STRUCTURE): K 087 002C
- DIAMETER SORTER 3060
- Sorting Diameter (mm): 30.000 - 20.000 · Order Number: K 087 004 · ORDER NUMBER (+ STRUCTURE): K 087 003B
- DIAMETER SORTER 4080
- Sorting Diameter (mm): 40.000 - 80.000 · Order Number: K 087 003 · ORDER NUMBER (+ STRUCTURE): K 087 004B
- DIAMETER SORTER 60100
- Sorting Diameter (mm): 60.000 - 100.000 · Order Number: K 087 005 · ORDER NUMBER (+ STRUCTURE): K 087 005B
- MIN. BALL Ø [mm]
- Sorting Diameter (mm): MIN. BALL Ø [mm] · Order Number: MAX. BALL Ø [mm] · ORDER NUMBER (+ STRUCTURE): MIN. Ø SCAN SPEED · MAX. Ø SCAN SPEED
- DIAMETER SORTER 1830
- Sorting Diameter (mm): 18.000 · Order Number: 30.000 · ORDER NUMBER (+ STRUCTURE): 3 000 · 2 800
- DIAMETER SORTER 3060
- Sorting Diameter (mm): 30.000 · Order Number: 60.000 · ORDER NUMBER (+ STRUCTURE): 2 800 · 1 800
- DIAMETER SORTER 4080
- Sorting Diameter (mm): 40.000 · Order Number: 80.000 · ORDER NUMBER (+ STRUCTURE): 2 400 · 1 300
- DIAMETER SORTER 60100
- Sorting Diameter (mm): 60.000 · Order Number: 100.000 · ORDER NUMBER (+ STRUCTURE): 1 800 · 800
- DIAMETER SORTER 1830
- Sorting Diameter (mm): DIAMETER SORTER 1830 · ORDER NUMBER (+ STRUCTURE): DIAMETER SORTER 3060
- Dimensions (L×W×H)
- Sorting Diameter (mm): 1 656 × 692 × 1 643 (mm) · ORDER NUMBER (+ STRUCTURE): 2 312 × 692 × 1 643 (mm)
- Weight
- Sorting Diameter (mm): 282 kg · ORDER NUMBER (+ STRUCTURE): 295 kg
- Sorting groups
- Sorting Diameter (mm): 7 + NOK · ORDER NUMBER (+ STRUCTURE): 3 + NOK
- Repeatability
- Sorting Diameter (mm): ± 0.15 μm · ORDER NUMBER (+ STRUCTURE): ± 0.15 μm
- Input Power (230V)
- Order Number: 230V, 50Hz/60Hz (Type E plug)
- Input Power (110V)
- Order Number: 110V, 50Hz/60Hz (Type B plug)
Data from official ibg product information. Final configuration is confirmed in the EMUS quotation.
Where the Diameter Sorter 1830 / 3060 / 4080 / 60100 is used
- Diameter grading of large bearing balls
- Heavy-bearing balls

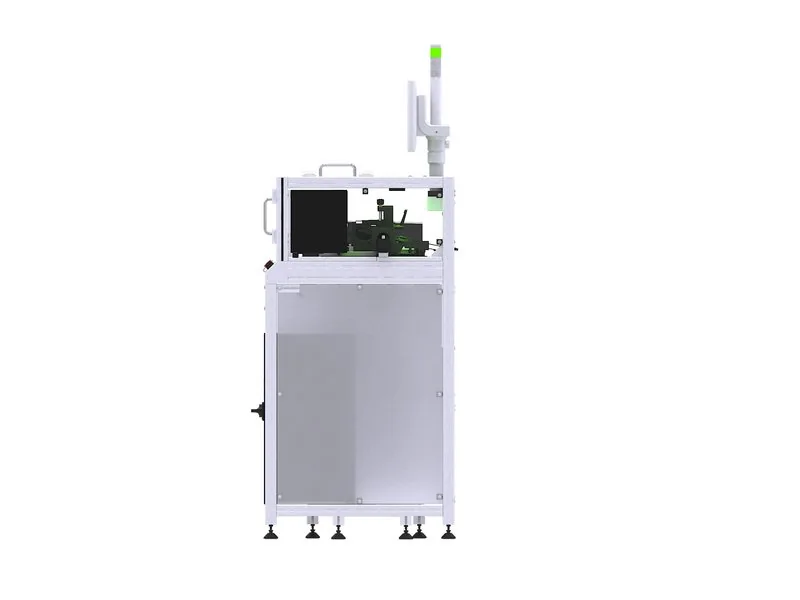

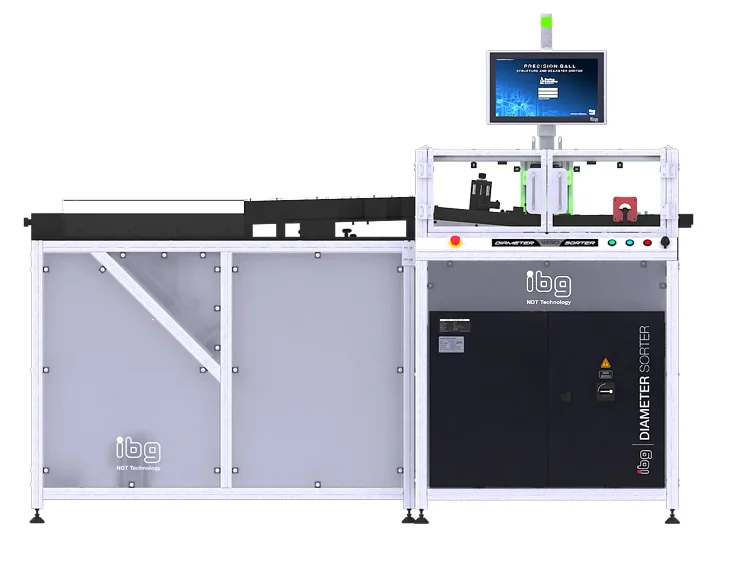

Product imagery
