AVIKO G3 STANDARD
Model: AVIKO 3060 / 4080 / 60100 G3 STANDARD
Dry ball scanner for large balls from 30 to 100 mm, with control cylinders, loader and outlet holder, in electric or compressed-air versions.
About the AVIKO G3 STANDARD
The AVIKO G3 STANDARD scans large balls in three ranges — 30–60, 40–80 and 60–100 mm — with eddy-current crack probes, laser surface sensors and vibration sensors. Ball rotation for full surface scanning uses control cylinders.
A loader and outlet holder are included, and the main movements are available driven by compressed air or by electric motors.
Technical data
- AVIKO 3060 G3 STANDARD - ELECTRIC
- Sorting Diameter (mm): 30 – 60 · Order Number: K 096 600E
- AVIKO 4080 G3 STANDARD - ELECTRIC
- Sorting Diameter (mm): 40– 80 · Order Number: K 096 700E
- AVIKO 60100 G3 STANDARD - ELECTRIC
- Sorting Diameter (mm): 60 – 100 · Order Number: K 096 800E
- AVIKO 3060 G3 STANDARD - COMPRESSED AIR
- Sorting Diameter (mm): 30 – 60 · Order Number: K 096 000
- AVIKO 4080 G3 STANDARD - COMPRESSED AIR
- Sorting Diameter (mm): 40– 80 · Order Number: K 096 200
- AVIKO 60100 G3 STANDARD - COMPRESSED AIR
- Sorting Diameter (mm): 60 – 100 · Order Number: K 096 400
- BALL Ø [mm]
- SCAN SPEED [pcs/hr]
- 30
- 237
- 40
- 188
- 50
- 148
- 60
- 117
- BALL Ø [mm]
- SCAN SPEED [pcs/hr]
- 40
- 188
- 50
- 148
- 60
- 117
- 70
- 94
- 80
- 86
- 60
- SCAN SPEED [pcs/hr]: 117
- 70
- SCAN SPEED [pcs/hr]: 94
- 80
- SCAN SPEED [pcs/hr]: 86
- 90
- SCAN SPEED [pcs/hr]: 72
- 100
- SCAN SPEED [pcs/hr]: 61
- AVIKO G3 3060 / 4080 / 60100
- AVIKO G3 3060 / 4080 / 60100
- Dimensions (L×W×H)
- 1 300 × 2 000 × 1 800 (mm)
- Weight
- 355 kg
- Sorting groups
- 3 (OK, EOT probe rejection; EVT/ECT probe rejection)
- Input Power (230V)
- 230V, 50Hz/60Hz (Type E plug)
- Input Power (110V)
- 110V, 50Hz/60Hz (Type B plug)
- SCAN AREA width
- SCAN SPEED [pcs/hr]: SCAN AREA width · MAX. DEFECT size
- Electric optical probe
- SCAN SPEED [pcs/hr]: 1.2 mm · Spot defect Ø 600 μm
- Electric vibration probe
- SCAN SPEED [pcs/hr]: - · Deep flat 700 μm
- Eddy current probes
- SCAN SPEED [pcs/hr]: 2 mm · Crack defect 750 × 50 × 50 (μm)
Data from official ibg product information. Final configuration is confirmed in the EMUS quotation.
Where the AVIKO G3 STANDARD is used
- Large bearing balls 30–100 mm
- Heavy-bearing ball production

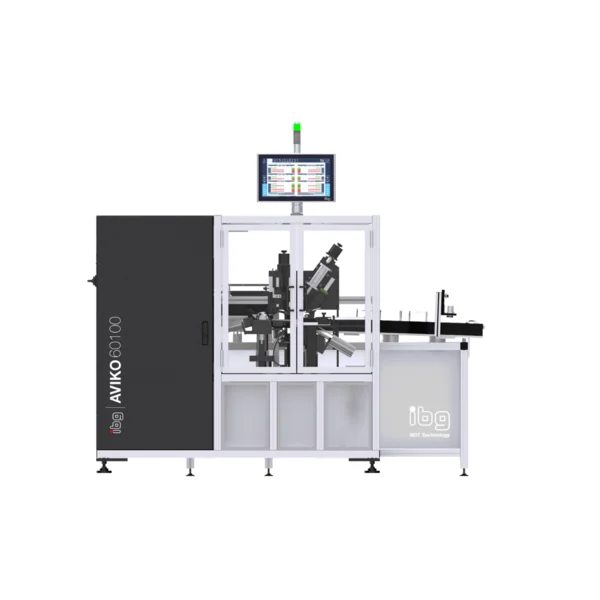

Product imagery
Official product videos
Brochures, datasheets & catalogues
AVIKO ball scanners & sorting solutions catalogue
PDF · Catalogue
