Diameter Sorter 0310 / 0820
Model: DS 0310 · DS 0820
LVDT-based ball diameter sorter for 3–20 mm balls with ±0.15 µm repeatability, sorting into 7 groups plus NOK.
About the Diameter Sorter 0310 / 0820
The Diameter Sorter 0310 and 0820 measure each ball with a high-precision LVDT probe and sort it into seven size groups plus a NOK channel. ibg states a repeatability of ±0.15 µm.
An optional microstructure test using an eddyguard S and eddy-current probe sorts out balls of a different material or hardness (ferromagnetic steels only).
Technical data
- DIAMETER SORTER 0310
- Sorting Diameter (mm): 3.000 – 10.319 · Order Number: K 083 700A · ORDER NUMBER (+ STRUCTURE): K 083 700C
- DIAMETER SORTER 0820
- Sorting Diameter (mm): 8.000 – 20.000 · Order Number: K 083 800A · ORDER NUMBER (+ STRUCTURE): K 083 800C
- MIN. BALL Ø [mm]
- Sorting Diameter (mm): MIN. BALL Ø [mm] · Order Number: MAX. BALL Ø [mm] · ORDER NUMBER (+ STRUCTURE): MIN. Ø SCAN SPEED · MAX. Ø SCAN SPEED
- DIAMETER SORTER 0310
- Sorting Diameter (mm): 3.000 · Order Number: 10.000 · ORDER NUMBER (+ STRUCTURE): 13 000 · 12 000
- DIAMETER SORTER 0820
- Sorting Diameter (mm): 8.000 · Order Number: 20.000 · ORDER NUMBER (+ STRUCTURE): 4 000 · 3 000
- DIAMETER SORTER 0310 / 0820
- Order Number: DIAMETER SORTER 0310 / 0820
- Dimensions (L×W×H)
- Order Number: 970 × 980 × 1 630 (mm)
- Weight
- Order Number: 282 kg
- Sorting groups
- Order Number: 7 + NOK
- Repeatability
- Order Number: ± 0.15 μm
- Input Power (230V)
- Order Number: 230V, 50Hz/60Hz (Type E plug)
- Input Power (110V)
- Order Number: 110V, 50Hz/60Hz (Type B plug)
Data from official ibg product information. Final configuration is confirmed in the EMUS quotation.
Where the Diameter Sorter 0310 / 0820 is used
- Diameter grading of small bearing balls
- Combined diameter and structure sorting

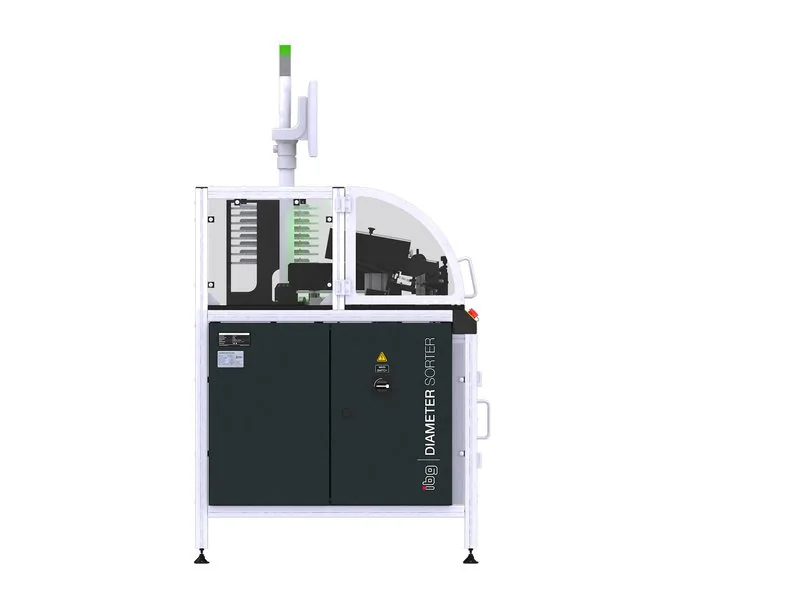

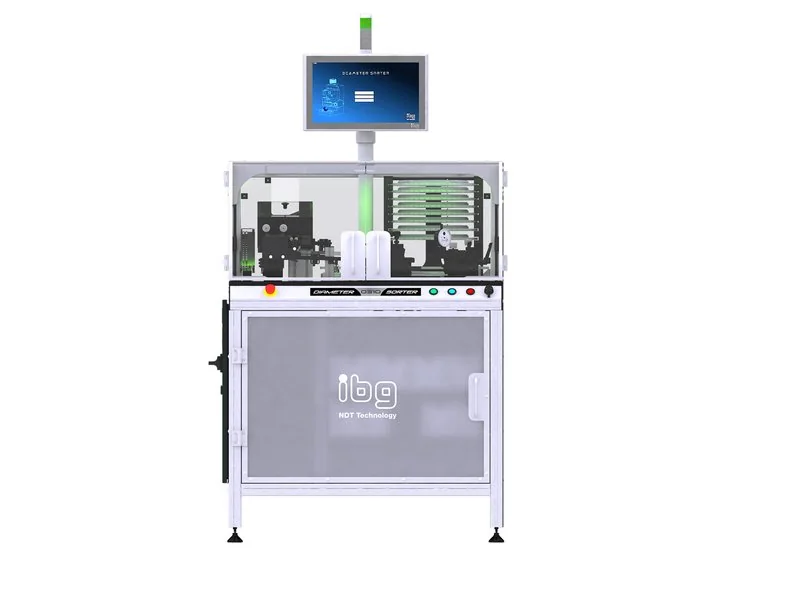

Product imagery
