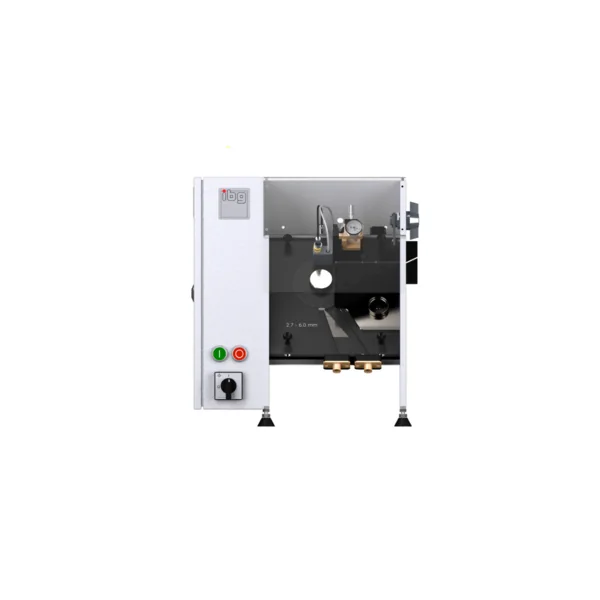

High Speed Ball Structure Sorter
Model: ibg ball sorter (1.5–6.0 mm / 6.0–25.0 mm)
Plug-in eddy-current sorter that verifies material and heat treatment of finished bearing balls at more than 10 balls per second.
About the High Speed Ball Structure Sorter
Soft balls or balls of the wrong material in a safety-relevant bearing can cause failures. The ibg ball sorter tests complete batches of finished balls for correct material properties using PMFT and harmonic analysis with an eddyliner S and structure test probe.
Two standard versions cover 1.5–6.0 mm and 6.0–25.0 mm balls; small balls can be tested at more than 10 per second and larger balls at up to 6 per second. A fast solenoid sorts each ball to OK or NG. Special versions from 1.3 mm are available on request.
- for small balls (1.5 – 6.0 mm)
- for large balls (6.0 – 25.0 mm)
- ball sorter mechanic (feeder, exchangeable transport discs, discharge chute, cabling, and switch box with control electronics)
- ibg eddy current instrument eddyliner S and an ibg structure test probe
Where the High Speed Ball Structure Sorter is used
- Material and heat-treatment verification of bearing balls
- Companion to AVIKO ball scanners
